Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | nylon membrane filter cartridge,high flow filter cartridge with warranty,PN series nylon membrane filter |
||
|---|---|---|---|
| Diameter: | 69mm | Length: | 10" |
|---|---|---|---|
| Filter Medium: | Nylon | Filtration Rating: | 1um, 2um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| MOQ: | 1 Piece | Delivery Time: | 1 Month |
| Sealing Material: | Silicone/Viton/PEP/EPDM | Filter Area: | 0.6-0.8㎡ |
| Diversion Layer: | Polyester | Max. Operating Temperature: | 80℃ |
| Highlight: |
69mm Nylon Filters Cartridge,69mm Sterilization Filters Cartridge,Nylon6 membrane Cartridge |
||

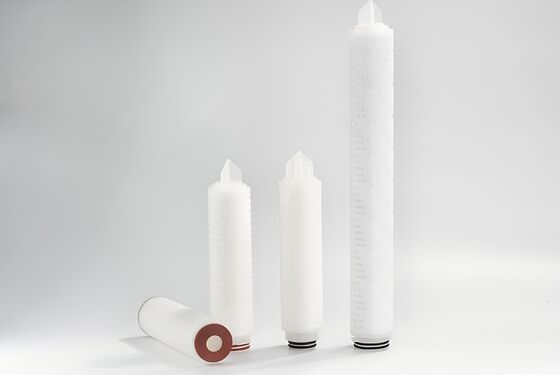

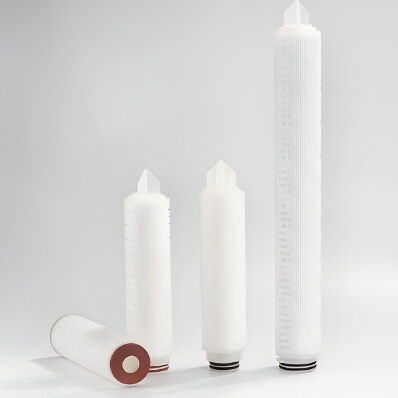

PN Nylon Sterilization Membrane Filter Cartridge
PN6/PN66 series filter cartridges are made of natural hydrophilic Nylon 6/Nylon 66 membranes. High porosity and uniform micropore distribution are the main characteristics of the filter material, with large flow rate, long use life, and superior chemical compatibility.
PND66 series filter cartridge is made of double-layer membrane, has higher filtration efficiency, gradient precision configuration, and longer service life.
Performance
| Filtration Rating | 0.1μm, 0.22μm, 0.45μm, 1.2μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Differential Pressure |
4bar/21℃ 2.4bar/80℃ |
Material Construction
| Filter Media |
PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic) |
| Support/Drainage | Polypropylene |
| Cage/Core/End Caps | Polypropylene |
| Seal Material | EPDM, Silicone, Viton, FEP |
Chemical Compatibility
| Benzene | R | CCl4 | R |
| Xylene | R | Tetrahydrofuran | R |
| Aceton-e | R | Gasoline | NR |
| Trichloroethylene | R | Acid | NR |
NR:No Recommend R:Recommend
Ordering Information
PN66 0010 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| PN6 | 0010 | =0.1μm | 05 | =5" | C1 | =226/Spear | E | =EPDM |
| PN66 | 0022 | =0.22μm | 10 | =10" | C3 | =222/Spear | S | =Silicone |
| 0045 | =0.45μm | 20 | =20" | C5 | =222/Flat | V | =Viton | |
| 0120 | =1.2μm | 30 | =30" | C6 | =226/Flat | P | =FEP | |
| 40 | =40" | C9 | =DOE | |||||
| PND66 | 1010 | =0.1+0.1μm | ||||||
| 2222 | =0.22+0.22μm | |||||||
| 4522 | =0.45+0.22μm | |||||||
|
|
4545 | =0.45+0.45μm | ||||||
