Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | Honeycomb Structure String Wound Filter Cartridge,Small Pressure Drop High Flow Filter Cartridge,Large Pollutant Holding Capacity PLX Series Filter Cartridge |
||
|---|---|---|---|
| Length: | 40‘’ | Diameter: | 2'' To 2.5''(50mm To 63.5mm ) |
|---|---|---|---|
| Micron: | 5μm | Max. Operating Temperature: | 121℃ |
| Suggestion Max Flow: | 40'': 78m³/h | Suggestion Pressure For Filter Replacement: | 2.5Bar@20℃ |
| Suggestion Design Flow: | 40'': 18-25m³/h | Inside Diameter: | 28mm,30mm |
| String Material: | PP/CO/GF/FO | ||
| Highlight: |
solid Removal 5 micron filter cartridge,pp sediment filter 5 micron cartridge,polypropylene filter cartridge 5 micron |
||
Material Construction
| Filter media |
PP:Polypropylene CO:Degreasing Cotton GF:Glass Fiber FO:Organic Fiber |

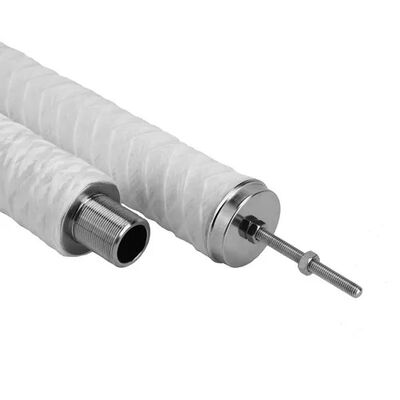

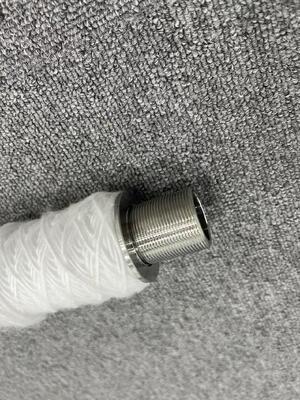

| Center Core | PP, Stainless Steel 304, 316L |

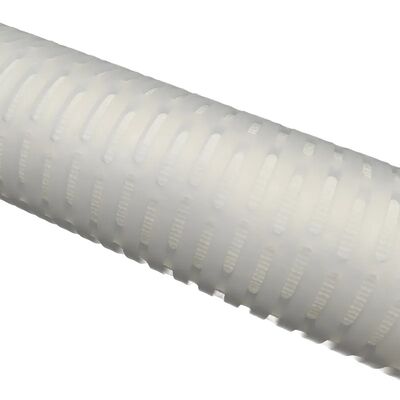

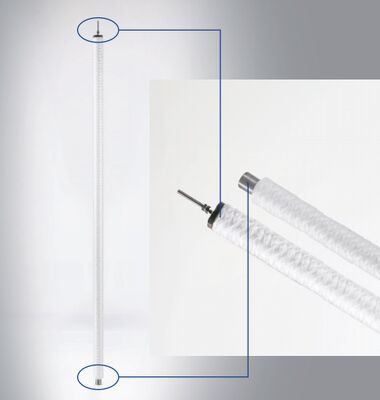

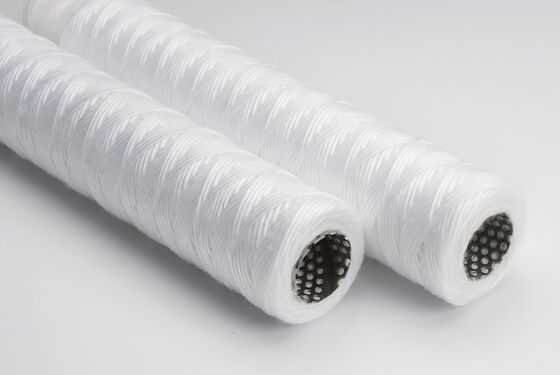

PLX series filter cartridge is made of textile fiber (polypropylene, absorbent cotton or glass fiber) according to a specific process, tightly wound on a porous framework (PP or SS porous tube) to form a honeycomb structure with sparse outside and dense inside, which can effectively filter suspended solids in the fluid, Rust, particles and other impurities, with the characteristics of small pressure drop and large pollutant holding capacity.
Performance
| Maximum Operating Temperature |
PP:60℃ CO:120℃ GF:200℃ FO:120℃ |
| Maximum Operating Differential Pressure | 4.0bar |
| Recommend change-out Differential Pressure | 2.0bar |
Ordering Information
PLX A3 0500 40
| Series | Filter Layer/Center core Material | Micron | Length | ||
| PLX | A1=PP/PP | 0100 | =1.0μm | 05 | =5" |
| A2=PP/SS(Stainless Steel) | 0300 | =3.0μm | 10 | =10" | |
| A3=Degreasing Cotton/SS | 0500 | =5.0μm | 20 | =20" | |
| A4=Glass Fiber/SS | 1000 | =10μm | 30 | =30" | |
| A5=FO/SS | 2500 | =25μm | 40 | =40" | |
| 7500 | =75μm | 50 | =50" | ||
| 10000 | =100μm | 60 | =60" | ||
|
|
15000 | =150μm | 70 | =70 | |
