Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | 80mm Diameter Pleated Filter Cartridge,120L/Min Flow Capacity Membrane Filter Cartridge,0.05μm Filtration Rating 83 Series Filter Cartridge |
||
|---|---|---|---|

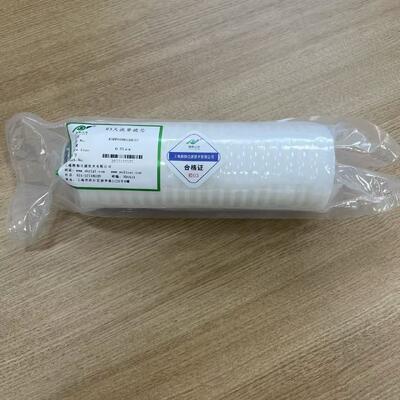

The 83 Series pleated filter cartridge is specifically engineered for wet process filtration in FPD (flat-panel display) manufacturing applications. Featuring an expanded filtration area and enhanced flow capacity, this cartridge delivers optimal performance for 5-6 generation production lines with flow requirements up to 120L/Min.
|
Filter Media
|
PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic)
EPS:PES HPPV:PP |
|
Cage/Core/End Caps
|
Polypropylene (PP)
|
|
Seal Material
|
EPDM, Silicone, V
|
|
Maximum Operating Temperature
|
80℃
|
|
Maximum Operating Difference Pressure
|
4bar/21℃
2.4bar/80℃ |
|
Dissolution Content
|
Less than 30mg/10"
Less than 0.25EU/ml/10" |
| Series | Micron Rating | Length | End Cap Type | Seal Material |
|---|---|---|---|---|
| 83 | PFL: 0.2μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10μm | 10" | C5=222/Flat C6=226/Flat |
E=EPDM S=Silicone V=V |
| PFLH: 0.2μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10μm | ||||
| EPS: 0.05μm, 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1.2μm, 20μm, 40μm, 70μm, 90μm | ||||
| HPPV: 0.5μm, 1.0μm, 1.5μm, 3.0μm, 5.0μm, 10μm |
