| Làm nổi bật: | High-Efficiency Filtration Device HEPA,High-Temperature Resistant HEPA,Filtration Device HEPA |
||
|---|---|---|---|

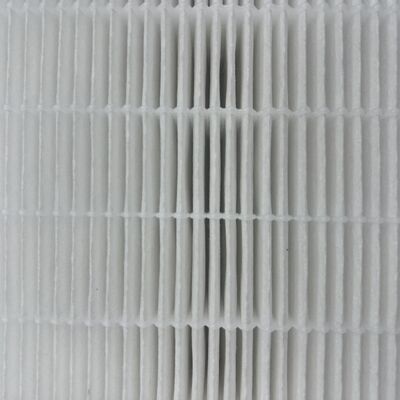

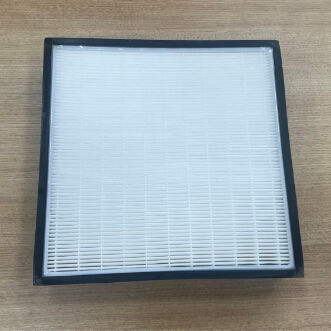

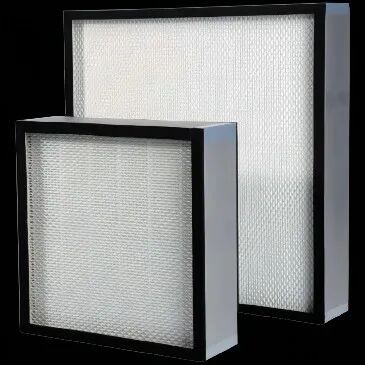

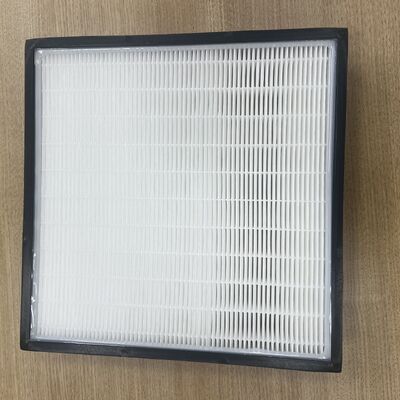

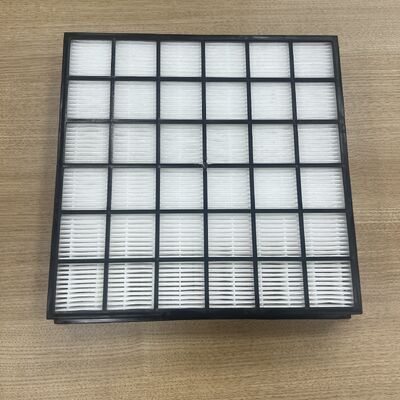

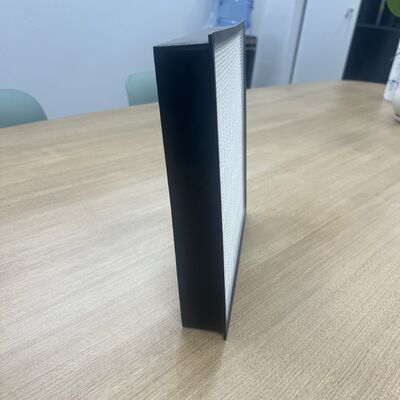

The PGHP series high-temperature high-efficiency filtration device is made of low-resistance ultrafine glass fiber paper with aluminum foilseparators. The frame material can be chosen from aluminum alloy orstainless steel, using high-temperature-resistant sealing glue to ensurestable operation in high-temperature conditions.
Mainly used for air purification in high-temperature environmentsin lithium battery cell production drying oven equipment. (Can beused long-term in high-temperature environments of 250°C and 350°C)
| Dimensions | Filter Grade | Rated Air Flow | Initial Resistance at Rated Air Flow | Recommended Air Flow |
|---|---|---|---|---|
| 610x610x150mm | H11 H13 H14 | 1000m³/h | ≤200/235262Pa | 600~1000m³/h |
| 610x457 X150mm | 750m³/h | 450~750m³/h | ||
| 305 x 610x150mm | 500m³/h | 300~500m³/h | ||
| 915x610x150mm | 1500m³/h | 900~1500m³/h | ||
| 1220 x 610 x 150mm | 2000m³/h | 1200~2000m³/h | ||
| 630 x 630 x 220mm | 1500m³/h | 900~1500m³/h | ||
| 945 x 630 x 220mm | 2200m³/h | 1300~2200m³/h | ||
| 1260 x 630x150mm | 2000m³/h | 1200~2000m³/h | ||
| 1260 x 630 x 220mm | 3000m³/h | 1800~3000m³/h | ||
| 610x 610x292mm | 2000m³/h | 1200~2000m³/h | ||
| 305x610x292mm | 1000m³/h | 600~1000m³/h |
